About the layout

This layout is unashamedly based on one of the classic layout plans, “Minories” by the late Cyril Freezer – a long-time MRC member. The concept was to show that a busy terminus station could be modelled in a limited space using the proprietary track available at the time.

Our model is an imagined extension of the Moorgate “Widened Lines” further into the City of London to a three platform terminus. The period modelled is late 1960s to early 1970s, prior to the electrification of the suburban lines from King’s Cross and St Pancras, with a heavily peaked service conveying commuters between Hertford, Hatfield and Luton and the city. Whilst the tight curves and steep inclines of the tunnels around King’s Cross limited the size of coaches and length of trains, there was a variety of motive power in use.

A Tribute to a Famous Plan

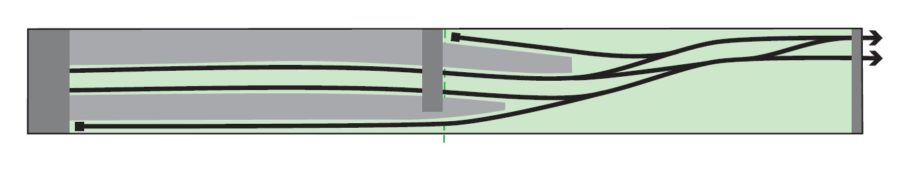

Cyril Freezer’s plan layout plan called “Minories” has appeared in several plan books over the years, along with variations on the theme.

The plan was the result of some doodling trying the recreate the Metropolitan station at Liverpool Street. This led to a three platform terminus with a neat arrangement of crossovers which, by chance, ensured that any movement only involved one reverse curve. The design was in a cutting, with retaining walls, in homage to the original.

To mark its 50th anniversary in 2007, a group of MRC members looking for a new project thought they would try to recreate the plan closely as possible but to aim for a high standard using modern modelling techniques. We didn’t have to look very far from Keen House or Liverpool Street for our inspiration.

Some History, Geography and Creative Writing

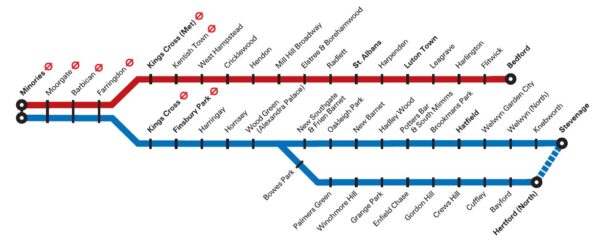

Minories is the road between Tower Hill and Aldgate Stations, an area that is approached by several railway lines. We’ve assumed that an additional line made it into the area – an extension of the City Widened lines from Moorgate to penetrate further into the City to a small terminus. Local railway historians will be aware of the trouble the Great Northern had accessing the City. From 1868 the company had access to Farringdon and Moorgate via the Metropolitan, and at about the same time to Blackfriars and Victoria via the LCDR. Although the Canonbury curve was built in 1874 to allow it access via the North London into Broad Street and the eastern side of the City, the LNW (which had invested heavily in the line to Broad Street) objected. This was later resolved by the North London operating trains to and from GN stations. At the same time connections to the south-east east of the City were poor – the rows between the Metropolitan and District railways meant that the Inner Circle wasn’t completed between Mansion House and Aldgate until 1884 – and it isn’t too difficult to imagine that, with eyes on a lucrative market, the GN financed its own an extension beyond Moorgate to Minories (GN), with a possible future extension further east onto the LTS.

Minories (GN)

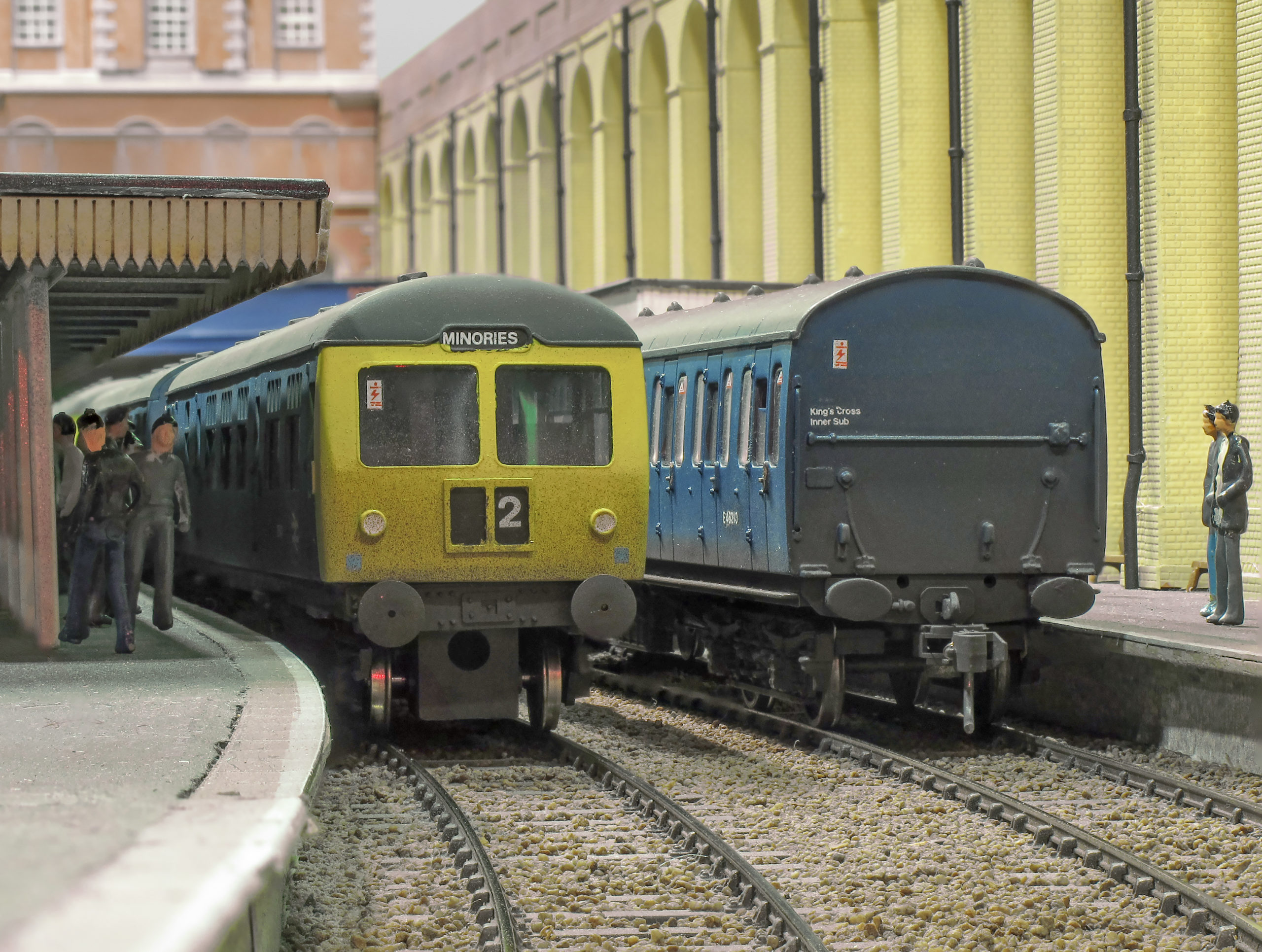

Fast forward 90 years, and imagine a small run-down passenger terminus in the heart of the City, with a highly peaked diesel train service from and to a range of destinations on the GN and Midland main lines. They aren’t as dull as it sounds as the GN service in the late green and early blue period included a wide range of locos on suburban services, including Classes 15, 20, 23, 24, 25, 26 and (mainly) 31, hauling 5 coach trains of Mk1 Suburban coaches, followed by predominantly Cl. 105 (but occasionally other) multiple units. The Midland service is run by Class 116 or 127 Bed-Pan DMUs. Certainly more interesting than first appears, and an area and period not often modelled.

The layout

Our layout is built in EM gauge, and our main compromise has been to slightly lengthen the points to give slightly more generous curves making the scenic area about a foot longer and 2″ wider than Cyril envisaged. This allows loco + 4 coach trains – a small reduction from the real thing. Whilst the over-bridges are ideal scenic breaks and joint-coverers, we have avoided the middle hinge device to allow for a deeper back scene, more accurate alignment and to make the boards more manoeuvrable. The baseboards are mainly plywood with some softwood to strengthen the corners. There is a 6-road traverser fiddle yard built from heavy-duty filing cabinet sliders and more ply, which allows for a wide variety of trains. The operation is conventional DC control with Kaydee buckeye couplings.

The rolling stock is generally ready to run, although most of it has been heavily modified and detailed. Cravens DMUS are from DC Kits, Midland DMUs are cut-and-shut Lima, and some of the more unusual coaches are Comet or Bill Bedford kits

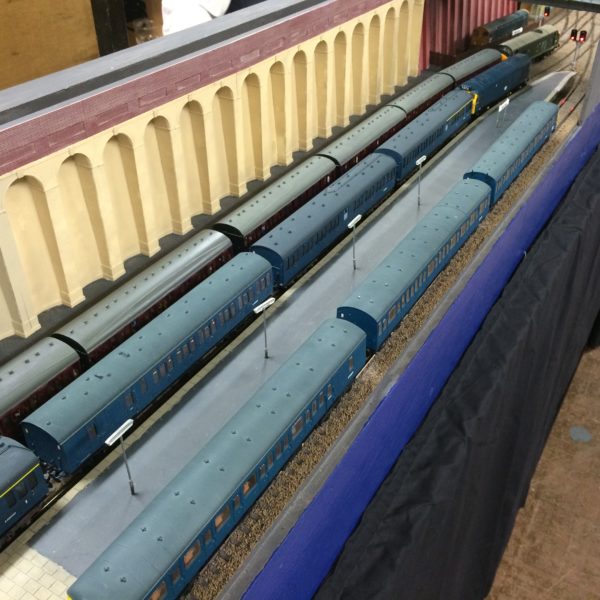

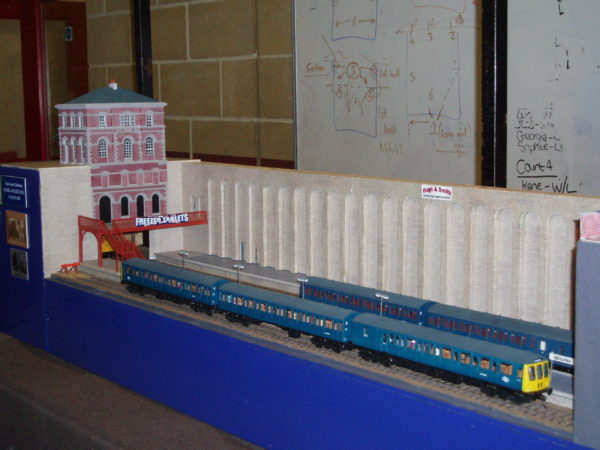

And here’s an early outing in Romford with original card and MDF retaining walls

Going Loopy

The original layout concept has been developed to allow non-passenger services to run through the station, to represent a freight-only connection to the east. This involves a larger, continuous fiddle yard, with a greater variety of rolling stock assuming services running to and from the docks.

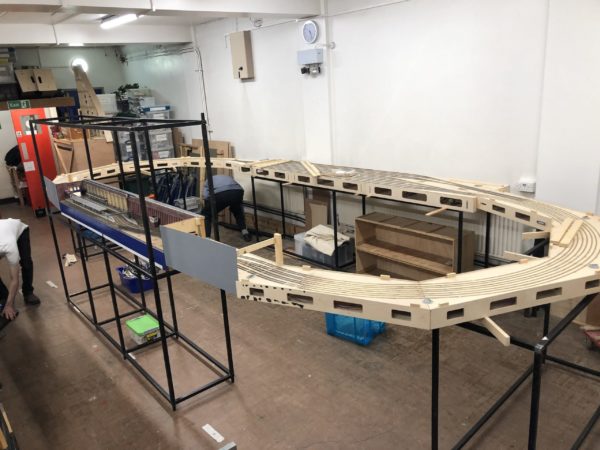

This shows the layout at Keen House during testing of the new circular boards

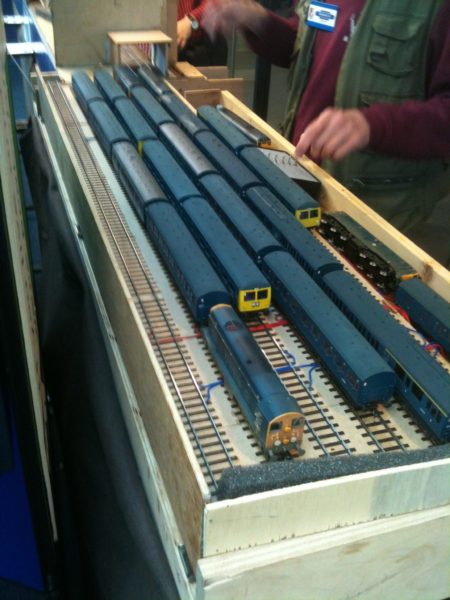

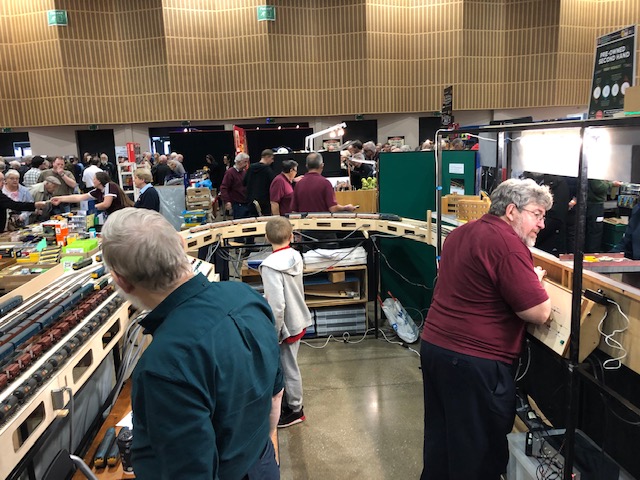

And here’s the new fiddle yard in action at Derby exhibition

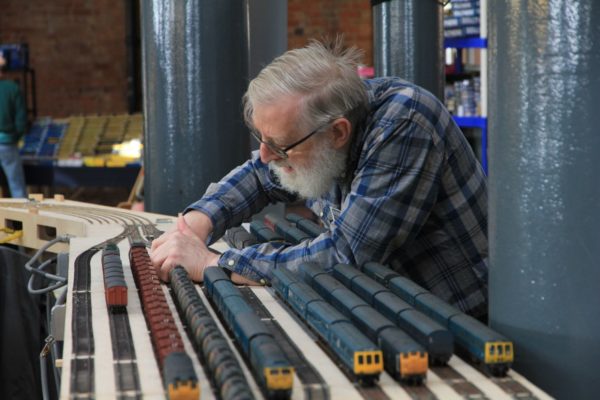

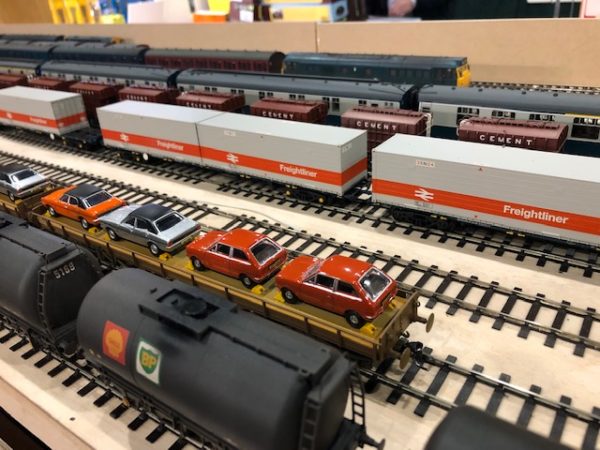

And some of the freight stock at The Great Electric Train Show

Exhibition Details

The layout is available for exhibitions. The overall length of the small layout 14′, and it travels in a car. The circular version is 23′ long x 11′ deep and needs a transit van. Both versions require 4 operators. Please contact Tom Cunnington for further details.

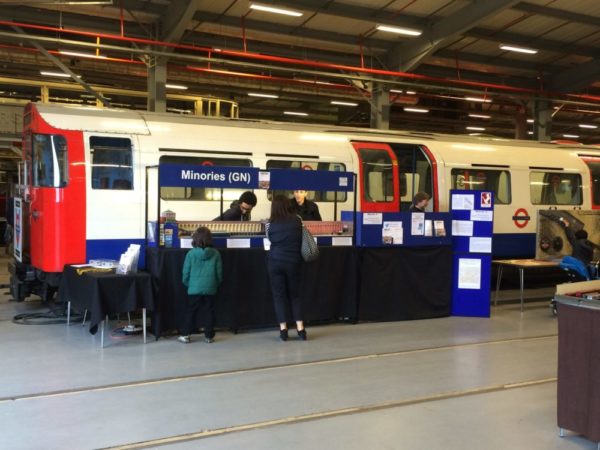

The original layout at LT Museum, Acton

And at Peterborough

Behind the scenes at the Great Electric Train Show

In The Media

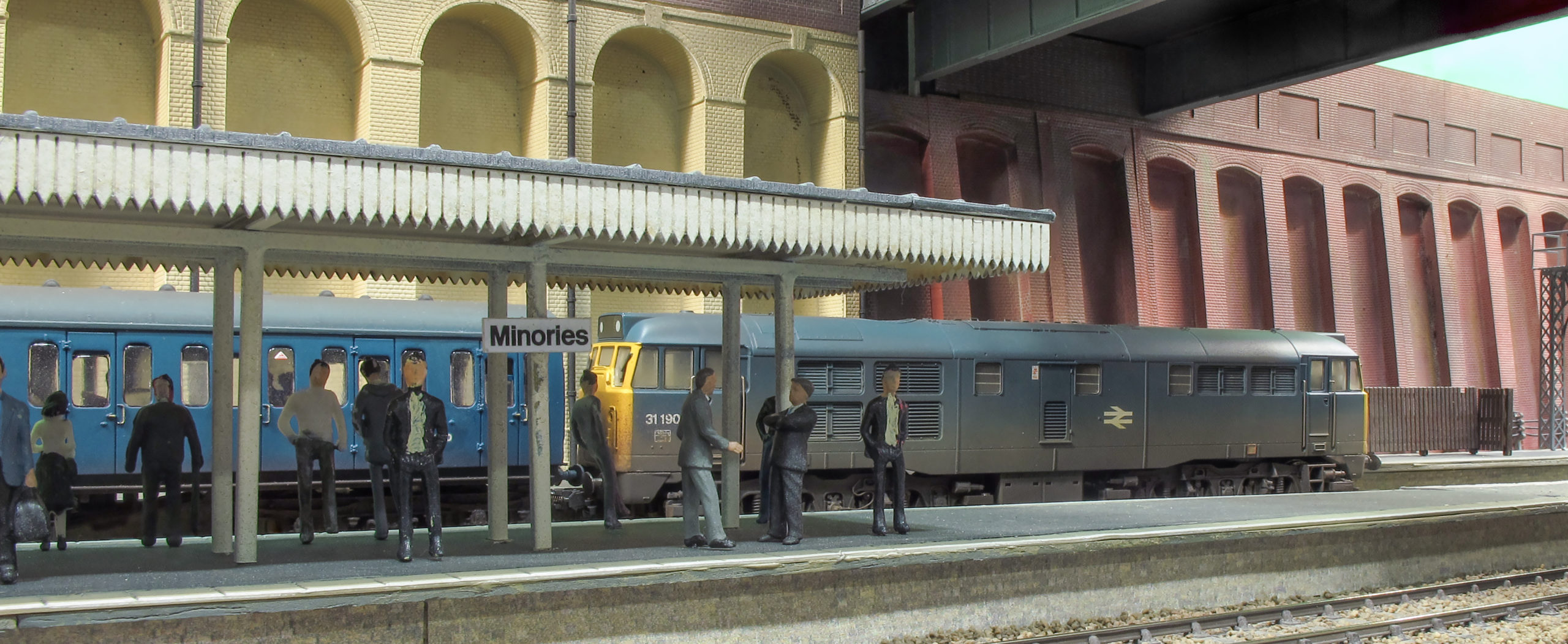

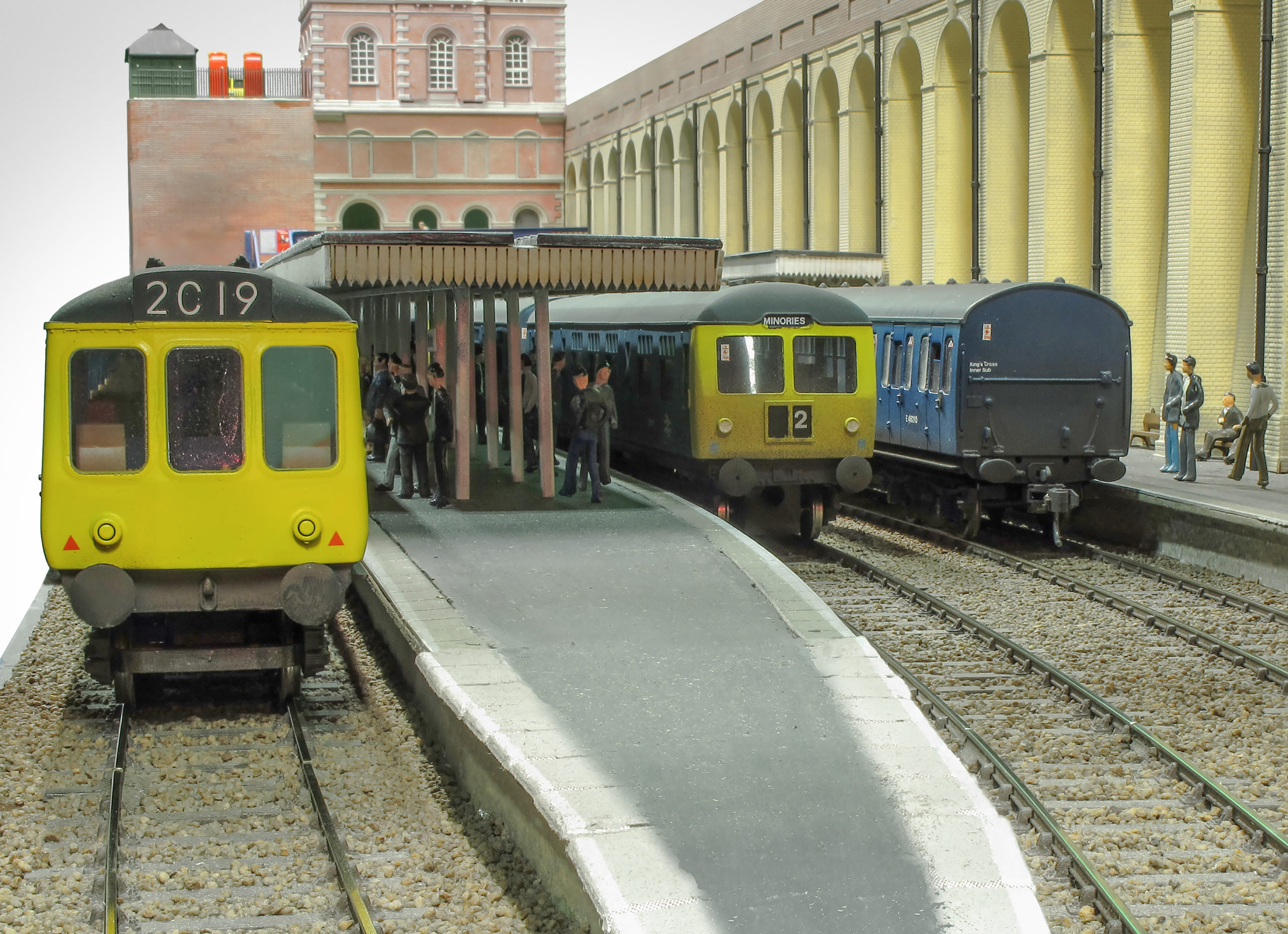

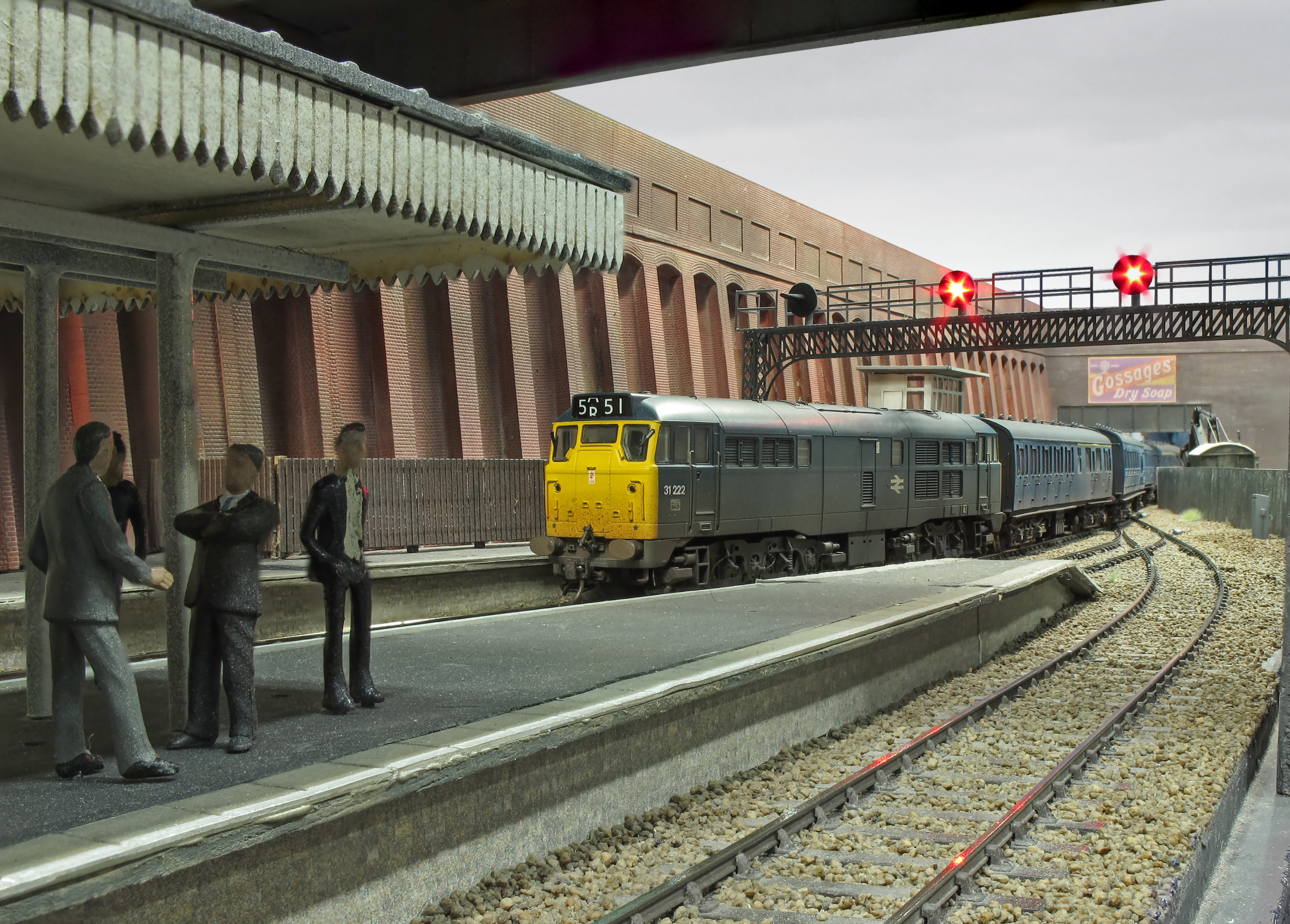

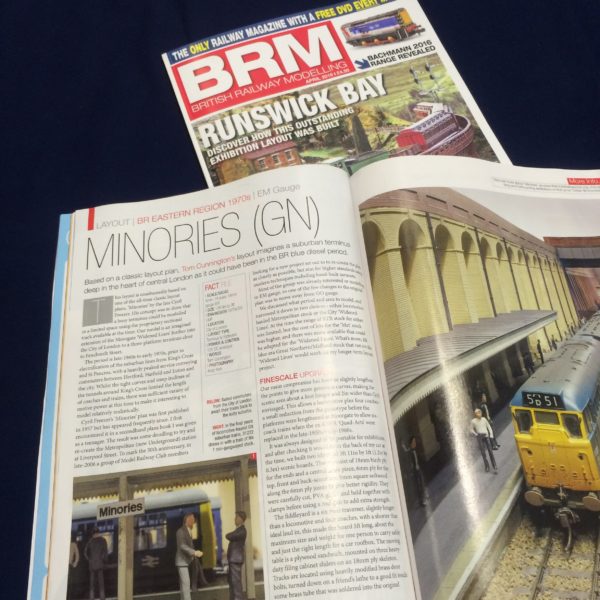

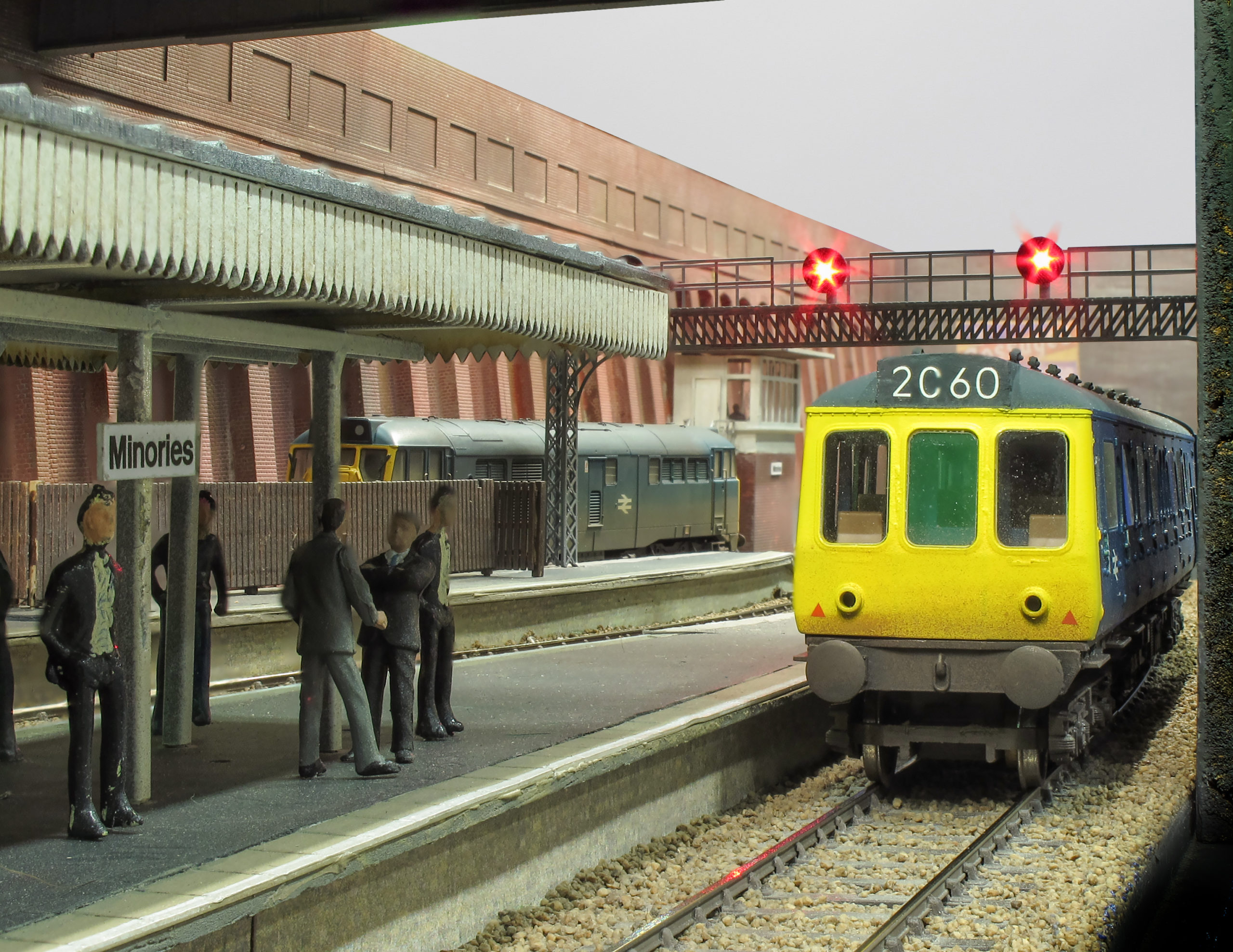

The layout featured in the April 2016 “British Railway Modelling” magazine and the October 2019 edition of Hornby Magazine, and has been used in a number of TV items. The pictures on the top of this page are courtesy of Andy York and BRM.

If you’d like to join The MRC or give membership as a gift, and find out more about projects like this and have access to our archive, Join Us today.

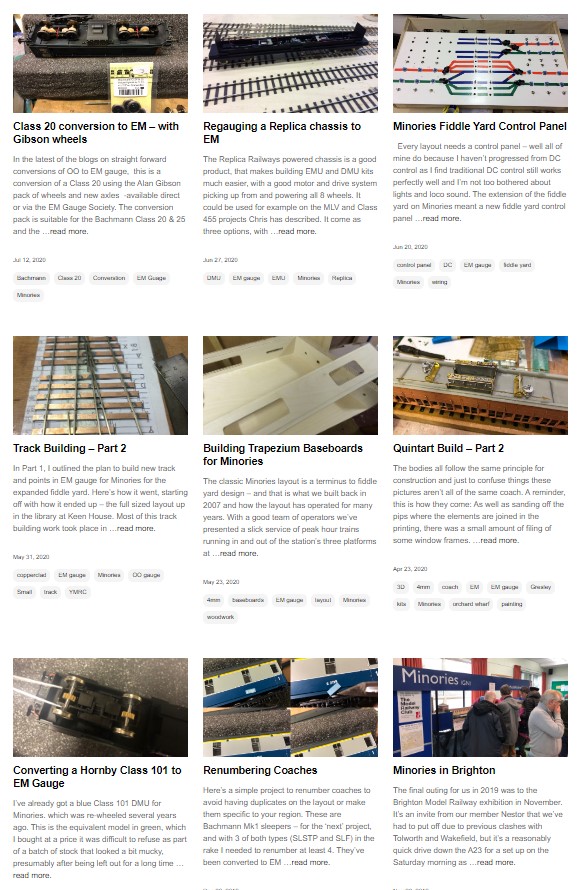

More About the Layout - Blogs
